Multi-Channel ECG Shape Detection with a 2-D ALSSM / Cost-Ratio [ex804.0]¶
Heartbeat shapes are detected in a multi-lead ECG by fitting a separable 2-D Autonomous Linear State-Space Model (ALSSM) over time (axis 0) and channel (axis 1) and scoring every time index with a cost ratio
\(CR = \dfrac{J_0}{J_1}\)
where \(J_0\) is the squared error of a flat (zero) hypothesis and \(J_1\) the
squared error obtained when a fixed reference shape -- the model state
estimated at a hand-picked reference beat k_REF -- is compared to the observation at every
position. \(CR\) peaks wherever a beat matches the reference template.
The two models are
- time :
AlssmProd(AlssmPolyJordan(5), AlssmExp(gamma=1))on a backward window[0, b_r1], - channel:
AlssmPolyJordan(5)on a backward window[0, b_r2],
combined with NDCompositeCost and
filtered with RLSAlssm in steady state
(filter(y, dim_order=[0, 1])). Four reference shapes of increasing length
are evaluated.
Note: No graphical output.
Data¶
This example uses the following data file(s):
Console Output¶
/home/runner/work/lmlib/lmlib/examples/80-nDimensional/_temp_example-ex804_0-MCShapeDetection_sECG.py:22: SyntaxWarning: "\d" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\d"? A raw string is also an option.
$CR = \dfrac{J_0}{J_1}$
Traceback (most recent call last):
File "/home/runner/work/lmlib/lmlib/examples/80-nDimensional/_temp_example-ex804_0-MCShapeDetection_sECG.py", line 130, in <module>
nd_cost, xs_ref, J_0, J_A, lcr, cr, peaks = fit_shape(
~~~~~~~~~^
y, b_r1, b_r2, K_REF, M_REF, g)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/runner/work/lmlib/lmlib/examples/80-nDimensional/_temp_example-ex804_0-MCShapeDetection_sECG.py", line 79, in fit_shape
rls = lm.RLSAlssm(nd_cost, steady_state=True,backend=lfilter) # ND -> steady state
^^^^^^^
NameError: name 'lfilter' is not defined. Did you mean: 'filter'?
Code¶
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Multi-Channel ECG Shape Detection with a 2-D ALSSM / Cost-Ratio [ex804.0]
=========================================================================
Heartbeat shapes are detected in a multi-lead ECG by fitting a separable
2-D Autonomous Linear State-Space Model (ALSSM) over *time* (axis 0) and
*channel* (axis 1) and scoring every time index with a cost ratio
$CR = \dfrac{J_0}{J_1}$
where $J_0$ is the squared error of a flat (zero) hypothesis and $J_1$ the
squared error obtained when a *fixed reference shape* -- the model state
estimated at a hand-picked reference beat ``k_REF`` -- is compared to the observation at every
position. $CR$ peaks wherever a beat matches the reference template.
The two models are
* time : ``AlssmProd(AlssmPolyJordan(5), AlssmExp(gamma=1))`` on a backward
window ``[0, b_r1]``,
* channel: ``AlssmPolyJordan(5)`` on a backward window ``[0, b_r2]``,
combined with [`NDCompositeCost`][lmlib.statespace.cost.NDCompositeCost] and
filtered with [`RLSAlssm`][lmlib.statespace.rls.RLSAlssm] in steady state
(``filter(y, dim_order=[0, 1])``). Four reference shapes of increasing length
are evaluated.
"""
import csv
import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import find_peaks
import lmlib as lm
# ----------------------------------------------------------------------
# Load observation (time x channel) from CSV -- no wfdb dependency
# ----------------------------------------------------------------------
CSV_FILE = "y_ecg_st-petersburg-incart-12-lead-arrhythmia-database_I20.csv"
with open(CSV_FILE, newline="") as fh:
sig_name = next(csv.reader(fh)) # header row -> lead names
y = np.loadtxt(CSV_FILE, delimiter=",", skiprows=1)
K, M = y.shape
k = np.arange(K)
def hide_rightandtopspine(ax):
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
# ----------------------------------------------------------------------
# Per-scale 2-D ALSSM fit + cost-ratio detection
# ----------------------------------------------------------------------
def fit_shape(y, b_r1, b_r2, K_REF, M_REF, g, poly_k1=5, poly_k2=5):
"""Return (nd_cost, xs_ref, J_0, J_A, lcr, cr, peaks) for one reference shape."""
alssm_k1 = lm.AlssmProd((lm.AlssmPolyJordan(poly_degree=poly_k1),
lm.AlssmExp(gamma=1))) # time
alssm_k2 = lm.AlssmPolyJordan(poly_degree=poly_k2) # channel
seg_k1 = lm.Segment(a=0, b=b_r1, direction=lm.BACKWARD, g=g)
seg_k2 = lm.Segment(a=0, b=b_r2, direction=lm.BACKWARD, g=g)
nd_cost = lm.NDCompositeCost([lm.CostSegment(alssm_k1, seg_k1),
lm.CostSegment(alssm_k2, seg_k2)])
rls = lm.RLSAlssm(nd_cost, steady_state=True,backend=lfilter) # ND -> steady state
rls.filter(y, dim_order=[0, 1])
xhat = rls.minimize_x() # (K, M, N)
xs_ref = xhat[K_REF, M_REF, :] # reference state
J_0 = rls.eval_errors(np.zeros_like(xhat)) # flat hypothesis
xs_A = np.tile(xs_ref[None, None, :], (K, M, 1)) # fixed-shape hypothesis
J_A = rls.eval_errors(xs_A)
lcr = -0.5 * np.log(J_A / J_0)
lcr = lcr / np.nanmax(lcr[:, M_REF])
cr = J_0[:, M_REF] / J_A[:, M_REF]
peaks, _ = find_peaks(cr, height=CR_THD, distance=b_r1 * 3)
peaks = peaks[(peaks < K_REF - b_r1) | (peaks > K_REF + b_r1)]
peaks = np.append(peaks, K_REF)
cr = cr / np.median(cr[peaks])
return nd_cost, xs_ref, J_0, J_A, lcr, cr, peaks
# ----------------------------------------------------------------------
# Reference shapes (coarse-to-fine) and plot setup
# ----------------------------------------------------------------------
l_b_r1 = [15, 30, 30, 30] # time half-window (backward)
l_K_REF = [88, 152, 218, 279] # reference-beat time index
l_b_r2 = [6, 6, 6, 6] # channel window
l_M_REF = [0, 0, 0, 0] # reference channel
l_g = np.multiply(l_b_r1, 1.0) # window decay
l_colors = ["xkcd:blue", "xkcd:periwinkle", "xkcd:spruce", "xkcd:green"]
l_CR_THD = [2.5, 2, 5, 5]
n_shapes = len(l_b_r1)
roman = ["I", "II", "III", "IV"]
offsets = (np.arange(M) * np.max(y)) * 0.8
hr = np.concatenate(([10], np.repeat(1, n_shapes)))
fig_multi, axs2 = plt.subplots(n_shapes + 1, 1, sharex=True, figsize=(9.6, 4.8),
gridspec_kw={"height_ratios": hr},
layout="constrained")
fig_detail, axs1 = plt.subplots(3, 1, sharex=True, figsize=(4.8, 4.8),
gridspec_kw={"height_ratios": [2, 0.7, 0.7]},
layout="constrained")
# ----------------------------------------------------------------------
# Detect + plot, one reference shape at a time
# ----------------------------------------------------------------------
for index, (b_r1, b_r2, K_REF, M_REF, g, color, CR_THD) in enumerate(
zip(l_b_r1, l_b_r2, l_K_REF, l_M_REF, l_g, l_colors, l_CR_THD)):
nd_cost, xs_ref, J_0, J_A, lcr, cr, peaks = fit_shape(
y, b_r1, b_r2, K_REF, M_REF, g)
ki = roman[index]
# ---- right figure: shared observation panel (drawn once) -------------
if index == 0:
axs2[0].plot(k, y + offsets, c="xkcd:gray", lw=1,
label=["$y$"] + [""] * (M - 1))
for m_ in range(M):
axs2[0].text(10, 0.1 + offsets[m_], sig_name[m_])
hide_rightandtopspine(axs2[0])
# reference-shape trajectory mapped onto the full (K, M) grid via eval_y
mapped = lm.Trajectory.eval_y(nd_cost, xs_ref, [K_REF, M_REF], [K, M])
axs2[0].plot(k, mapped + offsets, c=color, lw=1.2,
label=[fr"$\hat{{y}}_{{\bullet-k_{{{ki}}}}}$"] + [""] * (M - 1))
# ---- right figure: per-shape CR sub-panel ----------------------------
top_cr = 1.0
crplt = np.minimum(cr, top_cr)
axs2[index + 1].set_ylim(bottom=0, top=top_cr + 0.25)
axs2[index + 1].plot(k, crplt, c="xkcd:black", lw=1, label=fr"CR$_{{{ki}}}$")
for xp in peaks:
mark = "*" if xp == K_REF else 7
yval = top_cr if cr[xp] > top_cr else (cr[xp] if xp == K_REF else cr[xp] + 0.07)
axs2[index + 1].scatter(xp, yval, marker=mark, c=color, s=20, zorder=4)
axs2[index + 1].axvline(x=xp, ls="--", c="k", lw=0.5)
axs2[0].axvline(x=xp, ls="--", c="k", lw=0.5)
axs2[index + 1].legend(loc="center right")
hide_rightandtopspine(axs2[index + 1])
axs2[n_shapes].set(xlabel=r"$k_1$")
axs2[n_shapes].set_xlim(left=0, right=K)
# ---- left figure: detailed view of the first reference shape ---------
if index == 0:
kplot = np.arange(0, 750)
axs1[0].plot(kplot, y[kplot] + offsets, c="xkcd:gray", lw=1.25,
label=["$y$"] + [""] * (M - 1))
for m_ in range(M):
axs1[0].text(52, np.max(y[52:82, m_]) + 0.1 + offsets[m_], sig_name[m_])
axs1[0].plot(kplot, mapped[kplot] + offsets, c=color, lw=1.25,
label=[fr"$\hat{{y}}_{{\bullet-k_{{{ki}}}}}$"] + [""] * (M - 1))
axs1[0].legend(loc="upper right")
axs1[0].set_xlim(left=50, right=kplot.max() + 1)
hide_rightandtopspine(axs1[0])
crsingle = J_0[:, M_REF] / J_A[:, M_REF]
axs1[1].plot(kplot, crsingle[kplot], c="xkcd:black", lw=1, label=fr"CR$_{{{ki}}}$")
axs1[1].legend(loc="upper right", bbox_to_anchor=(1, 1.2))
axs1[1].set_ylim(bottom=-0.1)
hide_rightandtopspine(axs1[1])
axs1[2].plot(kplot, J_0[kplot, M_REF], c="xkcd:black", ls="--", lw=1.0, label="$J_0$")
axs1[2].plot(kplot, J_A[kplot, M_REF], c="xkcd:black", ls="-", lw=1.0, label="$J_1$")
axs1[2].legend(loc="upper right", bbox_to_anchor=(1, 1.2))
axs1[2].set(xlabel=r"$k_1$")
hide_rightandtopspine(axs1[2])
for xp in peaks:
for ax in axs1:
ax.axvline(x=xp, ls=(":" if xp == K_REF else "--"), c="k", lw=0.5)
mark = "*" if xp == K_REF else 7
axs1[1].scatter(xp, crsingle[xp], marker=mark, c=color, s=20)

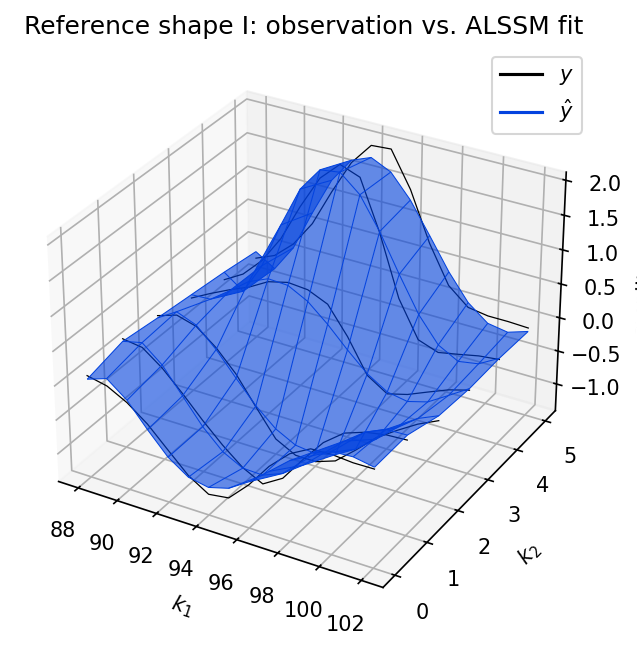

# ---- optional 3-D view of the reference-shape fit (window surface)
offs, surf = lm.Trajectory.eval(nd_cost, xs_ref) # (b_r1+1, b_r2+1)
rk = np.arange(K_REF, K_REF + b_r1)
rm = np.arange(M_REF, M_REF + b_r2)
surf_win = surf[0:b_r1, 0:b_r2]
fig3d = plt.figure(figsize=(7, 5))
ax3d = fig3d.add_subplot(projection="3d")
rrk, rrm = np.meshgrid(rk, rm)
for jj, col in enumerate(rm):
ax3d.plot(rk, np.full_like(rk, col), y[rk, col], c="k", lw=0.6)
ax3d.plot_surface(rrk, rrm, surf_win.T, color="xkcd:blue", alpha=0.6, shade=False)
ax3d.plot_wireframe(rrk, rrm, surf_win.T, colors="xkcd:blue", lw=0.5)
ax3d.plot([], [], [], c="k", label=r"$y$")
ax3d.plot([], [], [], c="xkcd:blue", label=r"$\hat{y}$")
ax3d.set_xlabel(r"$k_1$"); ax3d.set_ylabel(r"$k_2$"); ax3d.set_zlabel("amplitude")
ax3d.legend(loc="upper right")
ax3d.set_title(f"Reference shape {ki}: observation vs. ALSSM fit")
axs2[0].legend(loc="upper right")

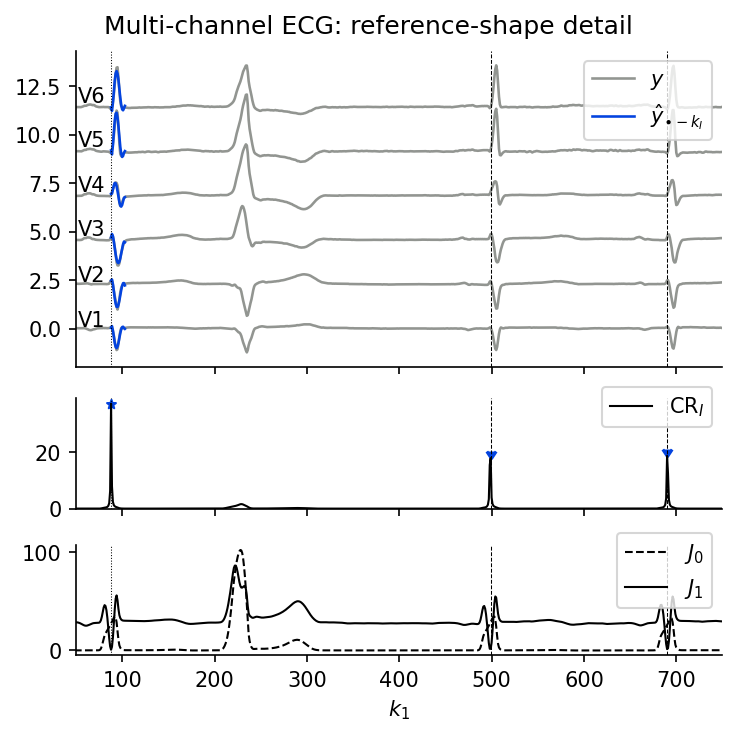

fig_detail.suptitle("Multi-channel ECG: reference-shape detail")
fig_multi.suptitle("Multi-channel ECG: multi-shape cost-ratio detection")
plt.show()
