TSLM ¶

Bases: ABC


              flowchart TD
              lmlib.statespace.applications.TSLM[TSLM]



              click lmlib.statespace.applications.TSLM href "" "lmlib.statespace.applications.TSLM"

Full implementation of the Two-Sided Line Model (TSLM) as published in "Onset Detection of Pulse-Shaped Bioelectrical Signals Using Linear State Space Models" [Waldmann2022].

Comprehensive examples on how to apply TSLMs are provided at Onset and Peak Detection With Two-Sided Line Models (TSLMs).

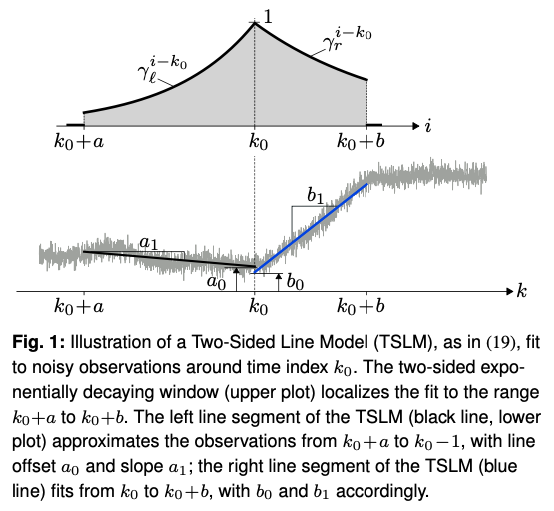

Two-Sided Line Model figure

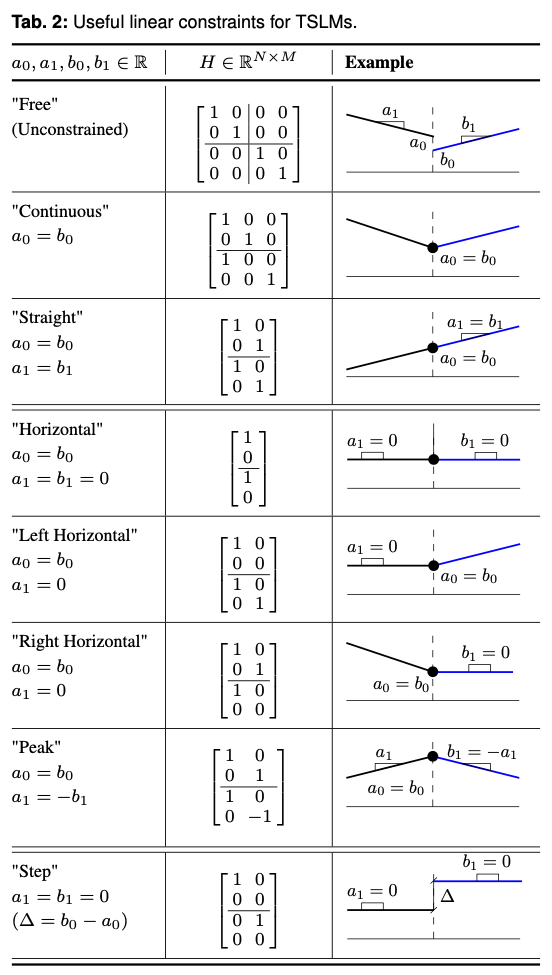

Two-Sided Line Model constraint table

Methods:

create_cost –

Returns a TSLM (Two Sided Line Model) Cost Model

Attributes:

H_Free –

ndarray : Defines constrain matrix \(H\) of type "Free", see [Waldmann2022].
H_Continuous –

ndarray : Defines constrain matrix \(H\) of type "Continuous", see [Waldmann2022].
H_Straight –

ndarray : Defines constrain matrix \(H\) of type "Straight", see [Waldmann2022].
H_Horizontal –

ndarray : Defines constrain matrix \(H\) of type "Horizontal", see [Waldmann2022].
H_Left_Horizontal –

ndarray : Defines constrain matrix \(H\) of type "Left_Horizontal", see [Waldmann2022].
H_Right_Horizontal –

ndarray : Defines constrain matrix \(H\) of type "Right_Horizontal", see [Waldmann2022].
H_Peak –

ndarray : Defines constrain matrix \(H\) of type "Peak", see [Waldmann2022].
H_Step –

ndarray : Defines constrain matrix \(H\) of type "Step", see [Waldmann2022].

Methods¶

create_cost `staticmethod` ¶

create_cost(ab, gs)

Returns a TSLM (Two Sided Line Model) Cost Model

Sets up Composite Cost (CC) Model using two ALSSM straight line models (AlssmPoly of order 2) and 2 concatenated segments with exponentially decaying windows to instantiate a TSLM.

        gs[0]  gs[1]
     __,--->   <---.__
    --------------------
A_L |   c_L  |    0    |
    --------------------
A_R |   0    |    c_R  |
    --------------------
    :        :         :
   a=ab[0]   0        b=ab[1]

Parameters:

ab (array_like of integer, of shape (2,)) –

Array/Tuple of two integers defining the left and right boundary of the left line model and the right line model, respectively. (The right boundary of the left model is set to b=-1 and the left boundary of the right model to a=0.)
gs (array_like of float, of shape (2,)) –

Array/Tuple of two floats defining the window weight of the left ( g_left = g[0] ) and the right g_right = g[0] line model, respectively.

Returns:

out ( CompositeCost ) –

Object representing a TSLM (Two Sided Line Model)

Example

ccost = lm.TSLM.create_cost( ab=(-15, 30), gs=(50, 50) ) print(ccost) CompositeCost(label=TSLM) └- ['AlssmPoly(A=[[1,1],[0,1]], C=[1,0], label=left line model)', 'AlssmPoly(A=[[1,1],[0,1]], C=[1,0], label=right line model)'], └- ['Segment(a=-15, b=-1, direction=fw, g=50, delta=0, label=left segment)', 'Segment(a=0, b=30, direction=bw, g=50, delta=0, label=right segment)']

Source code in lmlib/statespace/applications.py

@staticmethod
def create_cost(ab, gs):
    r"""
    Returns a TSLM (Two Sided Line Model) Cost Model

    Sets up Composite Cost (CC) Model using two ALSSM straight line models (AlssmPoly of order 2) and 2 concatenated segments with exponentially decaying windows to instantiate a TSLM.


    ```text
            gs[0]  gs[1]
         __,--->   <---.__
        --------------------
    A_L |   c_L  |    0    |
        --------------------
    A_R |   0    |    c_R  |
        --------------------
        :        :         :
       a=ab[0]   0        b=ab[1]
    ```

    Parameters
    ----------
    ab : array_like of integer, of shape (2,)
        Array/Tuple of two integers defining the left and right boundary of the left line model and the right line model, respectively.
        (The right boundary of the left model is set to `b=-1` and the left boundary of the right model to `a=0`.)
    gs : array_like of float, of shape (2,)
        Array/Tuple of two floats defining the window weight of the left ( `g_left = g[0]` )  and the right `g_right = g[0]` line model,
        respectively.

    Returns
    -------
    out : CompositeCost
          Object representing a TSLM (Two Sided Line Model)



    Example
    --------
    >>> ccost = lm.TSLM.create_cost( ab=(-15, 30), gs=(50, 50) )
    >>> print(ccost)
    CompositeCost(label=TSLM)
    └- ['AlssmPoly(A=[[1,1],[0,1]], C=[1,0], label=left line model)', 'AlssmPoly(A=[[1,1],[0,1]], C=[1,0], label=right line model)'],
    └- ['Segment(a=-15, b=-1, direction=fw, g=50, delta=0, label=left segment)', 'Segment(a=0, b=30, direction=bw, g=50, delta=0, label=right segment)']
    """
    return CompositeCost([AlssmPoly(1, label='left line model'), AlssmPoly(1, label='right line model')],
                         [Segment(ab[0], -1, 'fw', gs[0], label='left segment'),
                          Segment(0, ab[1], 'bw', gs[1], label='right segment')],
                         np.eye(2), label='TSLM')
